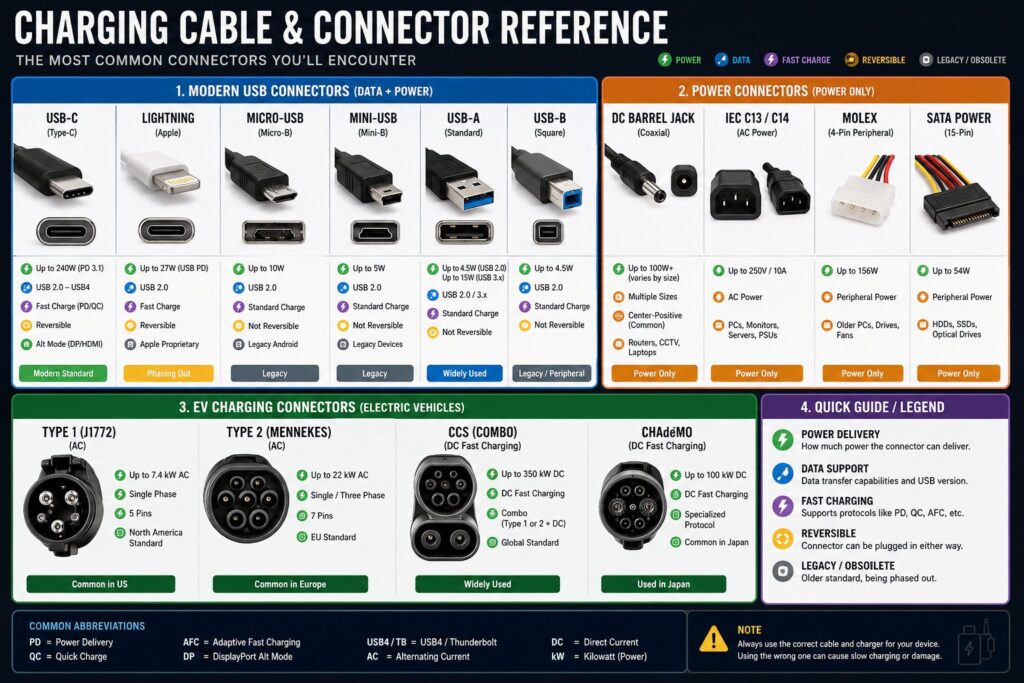

Charging Cable and Connector Reference
REV 2026.04
Scope: consumer + prosumer
01 Physical Connectors shape ≠ capability · always check the protocol rating
| Connector | Year | Typical use | Reversible | Status |
|---|---|---|---|---|
| USB-C 24-pin | 2014 | Phones, laptops, tablets, monitors, docks, accessories — universal | Yes | Current EU-mandated since Dec 2024 |
| USB-A Standard-A | 1996 | Host-side rectangular plug on PCs, chargers, hubs | No | Legacy still widespread |
| USB-B Standard-B | 1996 | Printers, scanners, audio interfaces, synths | No | Legacy niche |
| Micro-B 2.0 | 2007 | Older Android, e-readers, small peripherals, controllers | No | Legacy phasing out |
| Micro-B 3.0 | 2011 | External HDDs / older SSDs (wider plug) | No | Legacy |
| Mini-B | 2000 | Older cameras, MP3 players, GPS units | No | Obsolete |
| Lightning | 2012 | iPhones pre-15, older AirPods, Apple accessories | Yes | Legacy discontinued on new iPhones |
| MagSafe 3 | 2021 | MacBook Air/Pro magnetic charging — up to 140W | Magnetic | Current Apple-only |
| Barrel / DC jack | — | Laptop bricks, monitors, routers, networking gear | N/A | Legacy persistent in enterprise |
| Qi / Qi2 wireless | 2010 / 2023 | Phones, earbuds, watches · Qi2 adds magnetic alignment (MPP) | N/A | Current up to 15W (25W in Qi 2.2) |
02 USB Data Standards the connector says nothing about speed
| Standard | Marketing name | Max rate | Max length* |
|---|---|---|---|
| USB 2.0 | Hi-Speed | 480 Mbps | ~5 m |
| USB 3.2 Gen 1 | USB 5Gbps | 5 Gbps | ~2 m |
| USB 3.2 Gen 2 | USB 10Gbps | 10 Gbps | ~1 m |
| USB 3.2 Gen 2×2 | USB 20Gbps | 20 Gbps | ~1 m |
| USB4 Gen 2×2 | USB 20Gbps | 20 Gbps | ~2 m |
| USB4 Gen 3×2 | USB 40Gbps | 40 Gbps | ~0.8 m |
| USB4 v2 | USB 80Gbps | 80 Gbps | ~0.8 m |
* passive cable · active / optical cables extend reach at premium
03 Thunderbolt USB-C connector · stricter spec · Intel-licensed
| Version | Max rate | Max length | Notes |
|---|---|---|---|
| TB 3 | 40 Gbps | 0.8 m / 2 m active | Merged into USB4 foundation |
| TB 4 | 40 Gbps | up to 2 m | Dual 4K, 32 Gbps PCIe, 100W+ |
| TB 5 new | 80 Gbps (120 burst) | ~1 m passive | Dual 8K · backward-compat TB3/4/USB4 |
Compat: Most passive TB3/4/5 cables work with USB4 / 3.2 / 3.1 / 3.0 / 2.0 at the peripheral’s native speed. TB3 peripherals usually will not work on non-TB USB-C ports.
04 Power Delivery Standards watts = volts × amps · cable e-marker gates anything above 60W
| Standard | Max power | Voltage profiles | Cable requirement | Notes |
|---|---|---|---|---|
| USB BC 1.2 | 7.5 W | 5V / 1.5A | Any USB | Legacy dumb fast-charge |
| USB PD 2.0 | 100 W | 5V / 9V / 15V / 20V | E-marker above 60W (3A) | Superseded but deployed |
| USB PD 3.0 | 100 W | + PPS (adaptive) | E-marker above 60W | PPS enables step voltage |
| USB PD 3.1 EPR key | 240 W | + 28V · 36V · 48V | Certified EPR cable + e-marker | Gaming laptops, workstations |
| USB PD 3.2 | 240 W | refined PPS / AVS | Same as 3.1 | 2023 clarifications, no power bump |
| Qualcomm QC 4 / 5 | 27 W / 100 W+ | variable | USB-C | Android; PD-compatible |
| Apple MagSafe 3 | 140 W | proprietary over PD 3.1 | MagSafe 3 cable | Needs Apple 140W brick |
| OEM proprietary SuperVOOC · HyperCharge · etc. | 100–240 W+ | vendor-specific | Bundled cable only | Works only with matching brand brick |
05 Quick Picks match task → minimum cable spec
Phone charging only
USB-C, 60W, USB 2.0
Cheap cable is fine. Skip data specs.
Laptop charging
USB-C, 100W min, e-marker
5A rating. Must have e-marker chip.
Workstation / gaming laptop
USB-C, 240W EPR
Certified EPR cable only.
External SSD / dock
USB4 40Gbps or TB 4
Under 0.8m passive for full rate.
Dual 4K/8K monitor setup
Thunderbolt 4 or 5
Universal TB4 cable up to 2m.
Future-proof single cable
Thunderbolt 5
80 Gbps · 240W · dual 8K.
06 Critical Gotchas the reason your cable “doesn’t work”
E-marker missing → silent downgrade A USB-C cable without an e-marker chip caps at 60W + USB 2.0 regardless of what the packaging claims. #1 cause of slow laptop charging.
Connector ≠ protocol Two identical USB-C cables can differ by 40× in speed and 16× in power. Always check the printed spec or certification ID.
Length kills speed Passive 40Gbps+ cables degrade sharply past ~0.8 m. For longer runs, use active (chipped) or optical cables — significantly pricier.
“Charging-only” ≠ dock-ready USB 2.0 cable into a dock = power flows, video doesn’t. Docks need the full data + DP Alt Mode chain.
TB3 peripherals are picky They usually refuse to work on plain USB-C ports. TB4/5 ports accept USB-C devices but not vice-versa.
Proprietary fast-charge is a closed loop SuperVOOC / HyperCharge / etc. hit peak wattage only with the bundled cable and brick. Mix brands → fallback to PD.
CurrentLegacyObsolete
